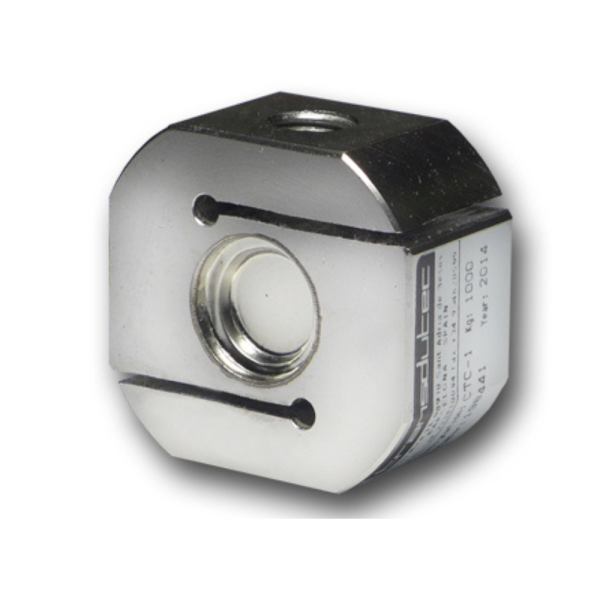

CTC-1

Applications

Silos and hopper weighing
Crane scales
OVerload protecion

Caractéristiques

Tension load cell
Fully stainless steel contruction
3000 divisions OIML R60 Class C
Hermetically sealed by laser welding
Protection against humidity IP68(EN60529)

Spécifications techniques

Nominal capacity (LN)	150-300-500-750-1000 kg
Accuracy class	3000 n. OIML
Minimum dead load	0 %LN
Service load	150 %LN
Safe load limit	200 %LN
Maximum combined error	0,017 %Sn
Repeatability error	0,015 %Sn
Temperature effect	0,01 %Sn/5ºC
On cero on sensitivity	0,006 %Sn/5ºC
Creep error	0,016 %Sn
Temperature compensation	-10..40ºC
Temperature limits	-20..50ºC
Nominal sensitivity	2±0.1% mV/V
Nominal input voltage	10V
Maximum input voltage	15V
Input resistance	386±2%
Output resistance	350±3
No load output (SN)	2 %Sn
Insultaion resistance	>5000 MOhms
Cable length	5m
