TCC-4
TCC-4
Flexion et Cisaillement
Voir d'autres produits Flexion et Cisaillement
300
500
750
1000
1500
2000
2500
3000
Kg
DEMANDER UN DEVIS
Informations sur le produit

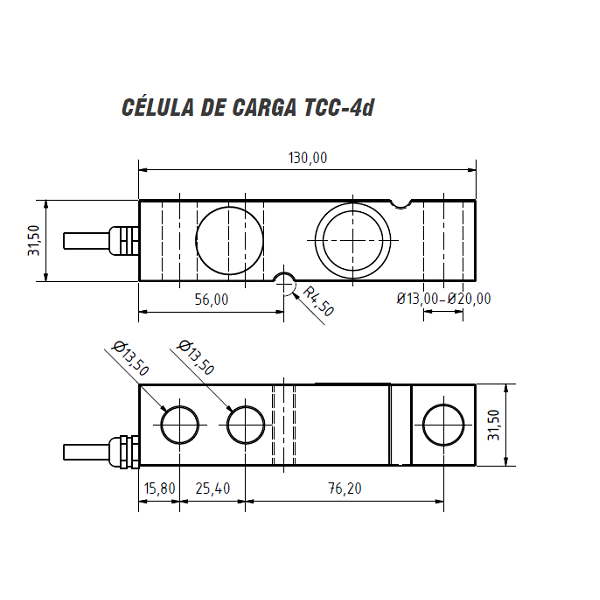

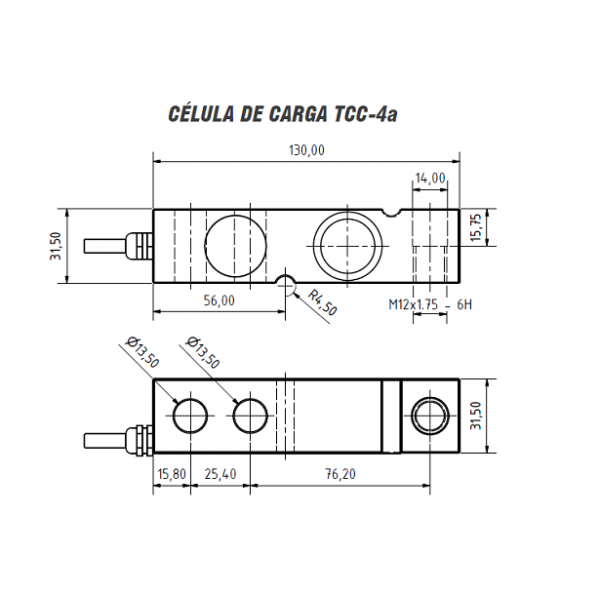

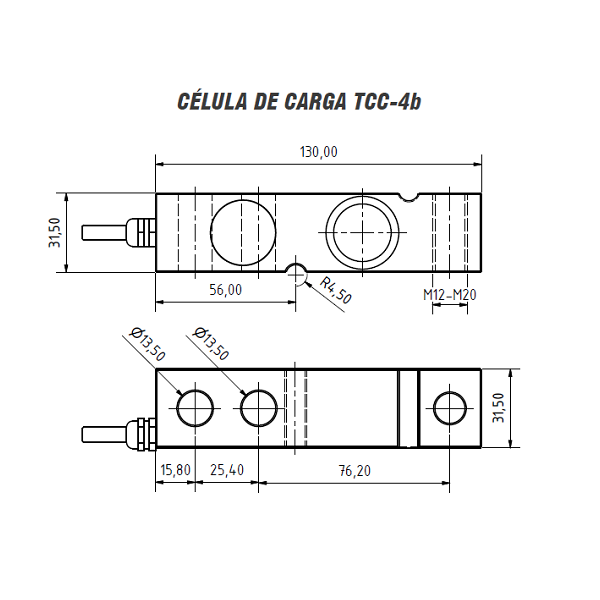

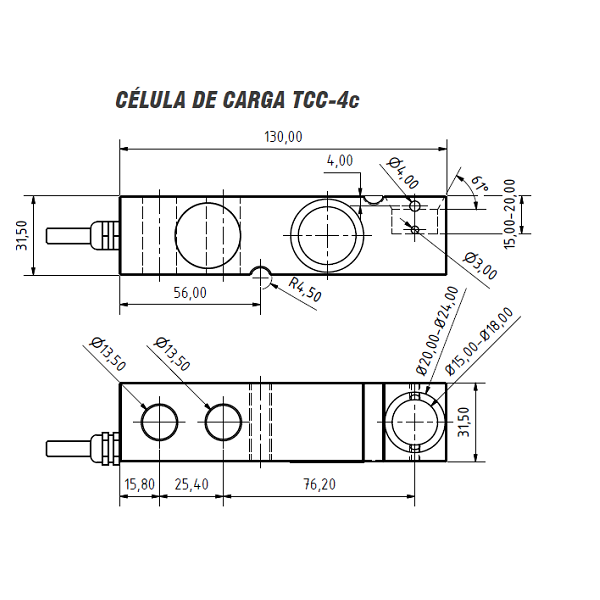

Versions (Details in above drawings) |
|
|
|
|
|
|
Applications
Platforms 4 load cellsSilos, Hopper wighing and tanks
Caractéristiques
Shear beam load cellStainless steel construction
3000 divisions OIML R60 Class C
Hermetically sealed by laser welding
Protection against humidity IP68 (EN60529)
Spécifications techniques
| Nominal Capacities (LN) | 300-500-750-1000-1500-2000-2500-3000 kg |
| Accuracy class | 3000 n. OIML |
| Minimum dead load | 0 %LN |
| Service load | 150 %LN |
| Safe load limit | 200 %LN |
| Maximum combined error | 0,017 %Sn |
| Repeatability error | 0,015 %Sn |
| Temperature effect | 0,01 %Sn/5ºC |
| On zero on sensitivity | 0,006 %Sn/5ºC |
| Creep error | 0,016 %Sn |
| Temperature compensation | -10..40ºC |
| Temperature limits | -20..50ºC |
| Nominal sensitivity | 2±0.1% mV/V |
| Nominal input voltage | 10V |
| Maximum input voltage | 15V |
| Input resistance | 386±2% or 1100±2% |
| Output resistance | 350±3 or 1100±3 |
| No load output(SN) | 2 %Sn |
| Insultaion resistance | >5000 MOhms |
| Cable length | 5m |
